High Precision Processing Optical Glass K9 Cylindrical Rod Lens

FOB Reference Price:Get Latest Price
US $0.5-10 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jilin, China (Mainland)
Brand Name:
SUNDAY
Model Number:
SS-p-01
Material:
Glass, H-K9L
Usage:
Optical
Structure:
Double Convex
Shape:
Cylindrical
Diameter:
2mm to 500mm
Diameter Tolerance:
+0.00/-0.1 or customer size
Surface Quality:
80/50 to 10/5
Flatness:
1 lambda to 1/10 lambda
Thickness Tolerance:
+0.00/-0.05mm
Focal Length Tolerance:
+/-1%
Clear Aperture:
>90% of diameter
Centration:
<3arcmin
Coating:
Single Mag2, Multiple Layers AR Coating
SupplyAbility
SupplyAbility:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Inner packing:special protective packing for optical products
Outer packing:carton, Shock absorption material and foam packing
Air transportation
Port
Changchun,Shanghai,Shenzhen
Lead Time :
1-30days
Product Description

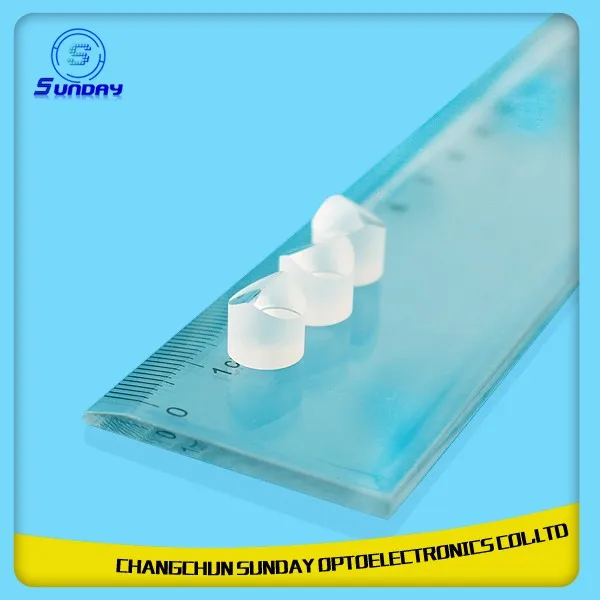

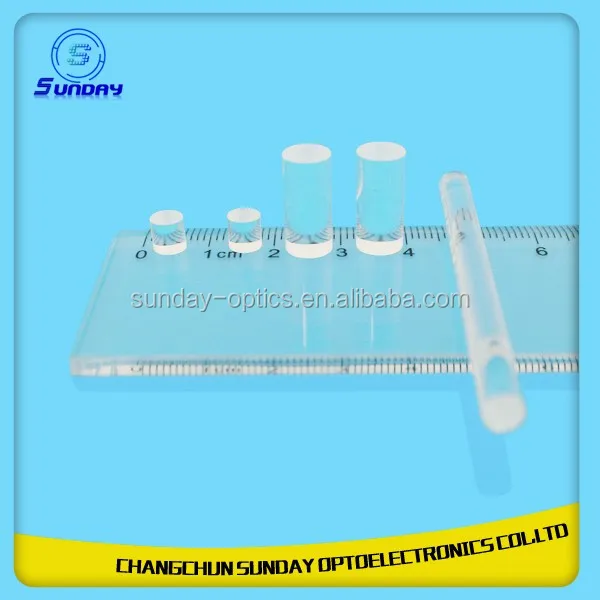

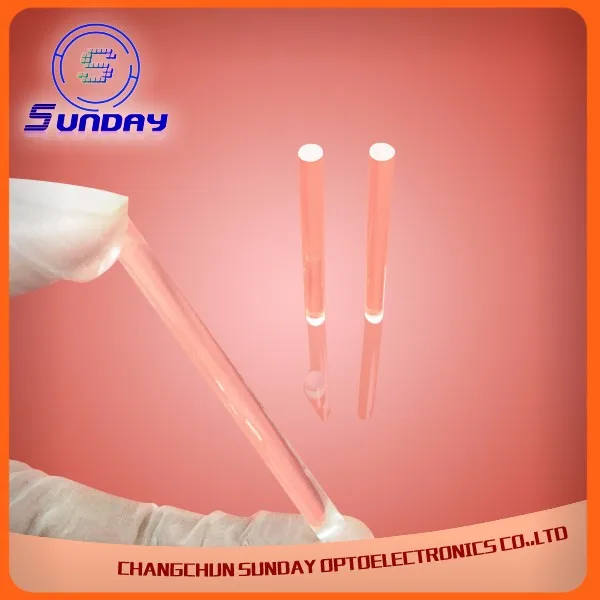

Rod Lens

Rod lenses are mainly used in Sensors, light guides, and endoscopes, laser systems. Sunday can make polishing either the end faces or the cylindrical faces depanding on customer’s using.
Rod lens can be two end faces polished, cylindrical faces polished, coating is available.

Diameter
2mm to 500mm
Diameter Tolerance
+0.00/-0.1 or customer size
Material
N-BK7,H-K9L,Sapphire,Fused Silica(JGS1),Caf2,ZnSe,Si,Ge,etc..
Surface Quality
80/50 to 10/5
Flatness
1 lambda to 1/10 lambda
Thickness Tolerance
+0.00/-0.05mm
Focal Length Tolerance
+/-1%
Clear Aperture
>90% of diameter
Centration
<3arcmin


Coating
Single Mag2, Multiple Layers AR Coating
         A:350-650nm
         B:650-1050nm
         C:1050-1585nm
         D: Customer Design
Company Profile

    Changchun Sunday Optoelectronics Co.,ltd is a high technology enterprise for over 10 years optics design and

productions. The company was established by Dr. Wang in year 2001.With these years development, Sunday has became a high-tech enterprise producing optical lenses, prisms, windows, filters, mirrors, coatings, camera lens, laser components. The four production lines can meet many customers’s needs. optical glass, crystal, sapphire, fused silica,znse,caf2,ge materials and more than 200 kinds of material are for customers. Sunday has advanced testing devices, such as ZYGO interferometer、focalmeter, NIKON 6D ,Nikon ruler, collimators, before shipping we testing every lens.

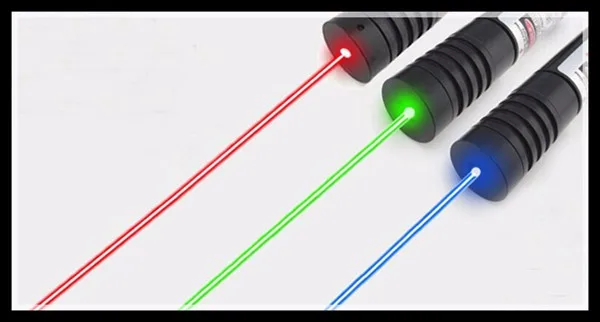

    laser products such as laser module , laser pointer, laser diode are on request.
    Sunday has established business relationships with many customers in the worldwide. We make designs, developments, pursue details ,tolerance ,service, welcome your inquiry and sample order!

Packing & Delivery

inner packing:special protective packing for optical products


outer packing:carton, Shock absorption material and bubble film package


Air transportation


Related Products

Sunday can provide all kinds of optical products.Materials include glass series,sapphire series,infrared series

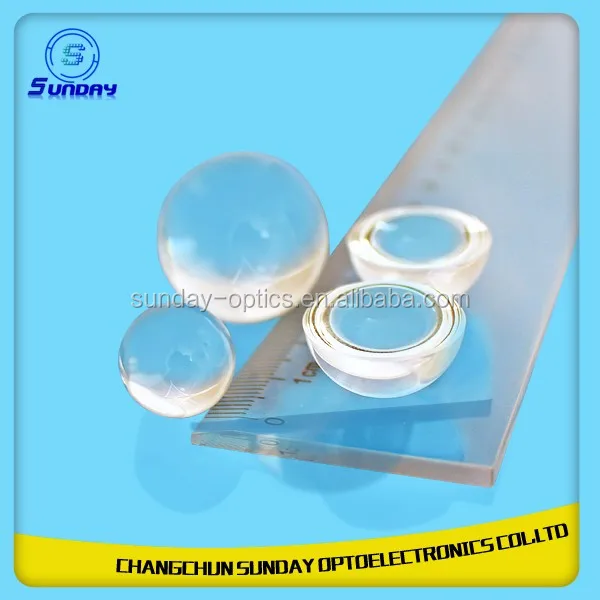

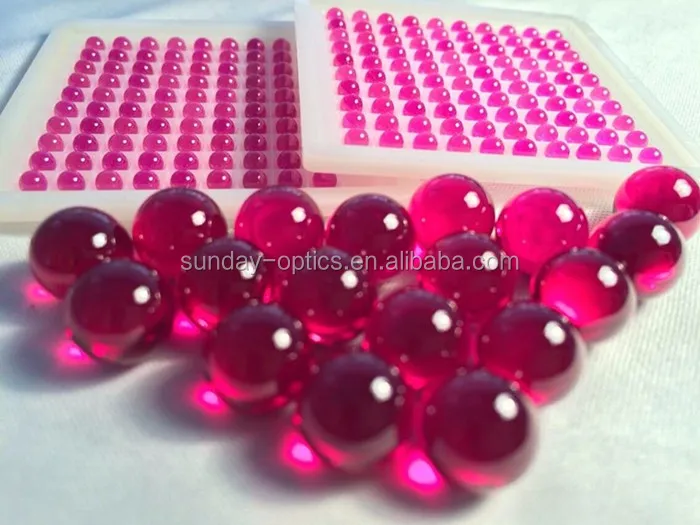

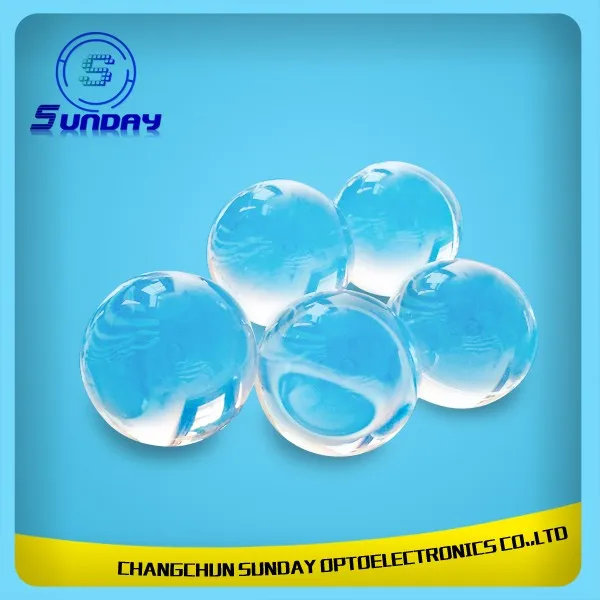

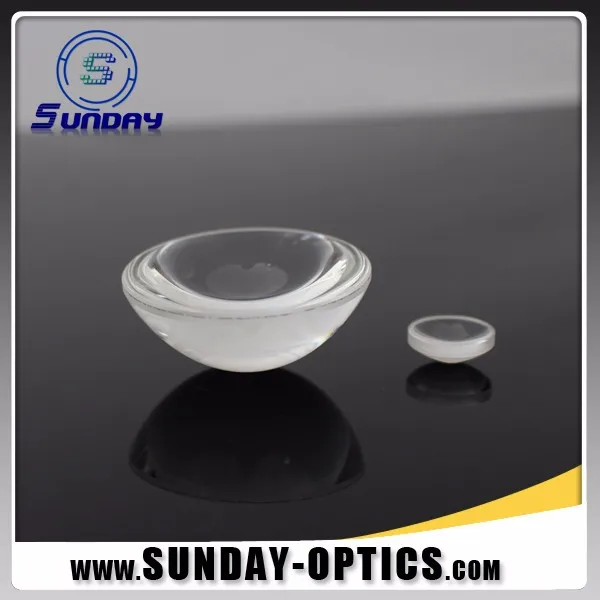

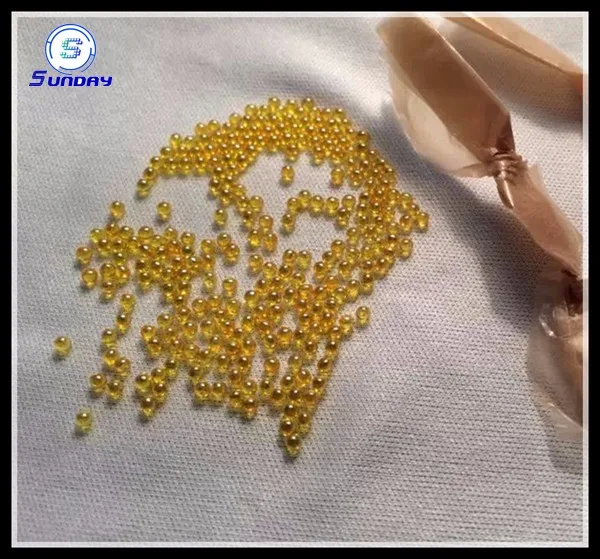

ball lens/half ball lens

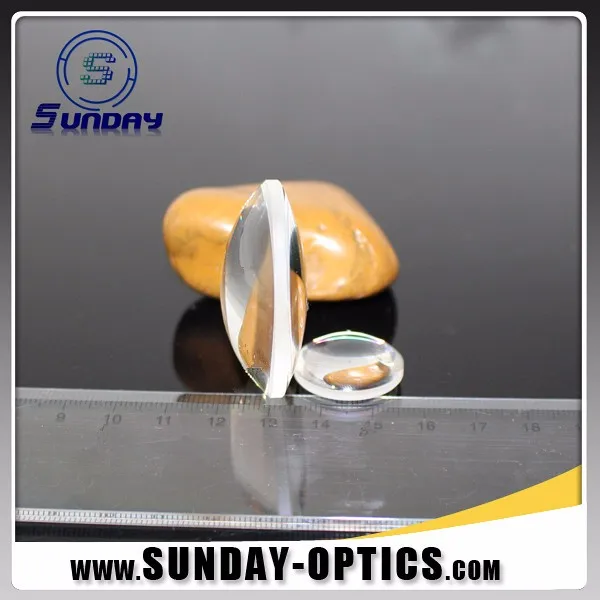

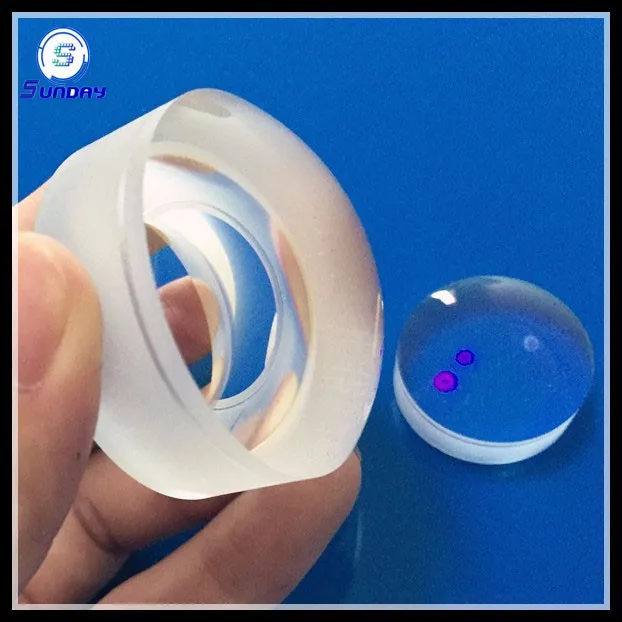

optical spheric/aspheric lens---plano convex,plano concave,double convex,double concave,meniscus,achromatic,triplet

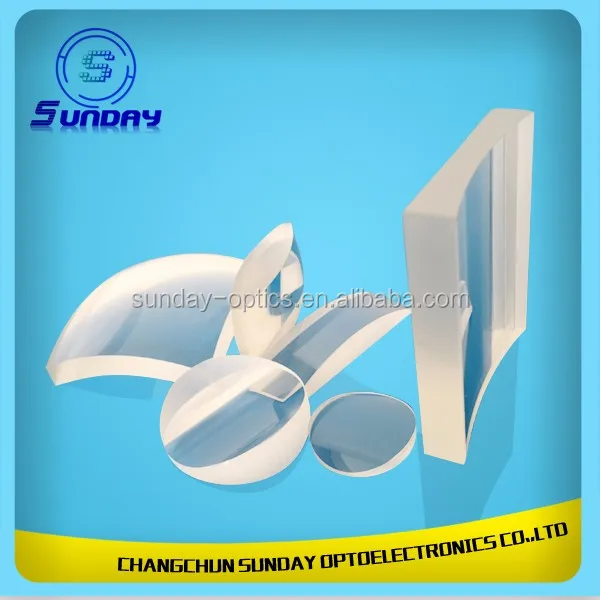

cylindrical lens---plano convex,plano concave,meniscus,achromatic,double convex,double concave,rod lens

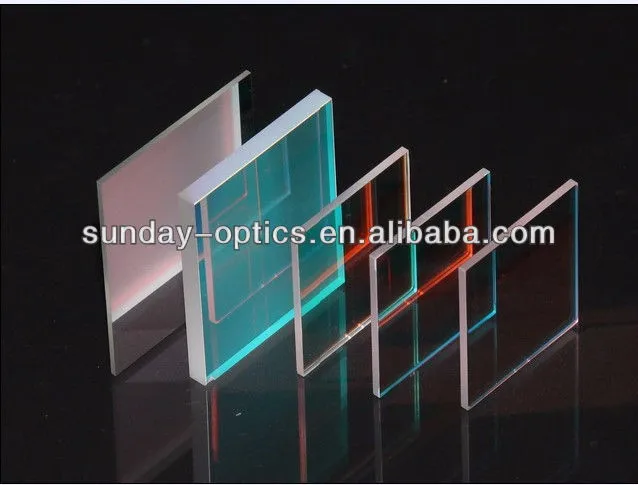

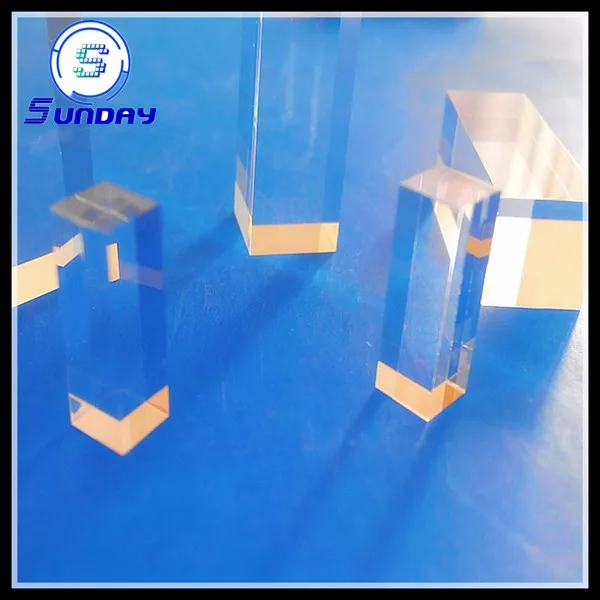

prism---Powell prism                                              optical window---rectangular window

              Dove prism                                                                                round window
              triangular prism                                                                        wedge window
              right angle prism                                                                      square window
              roof prism                                                                                  custom shape window

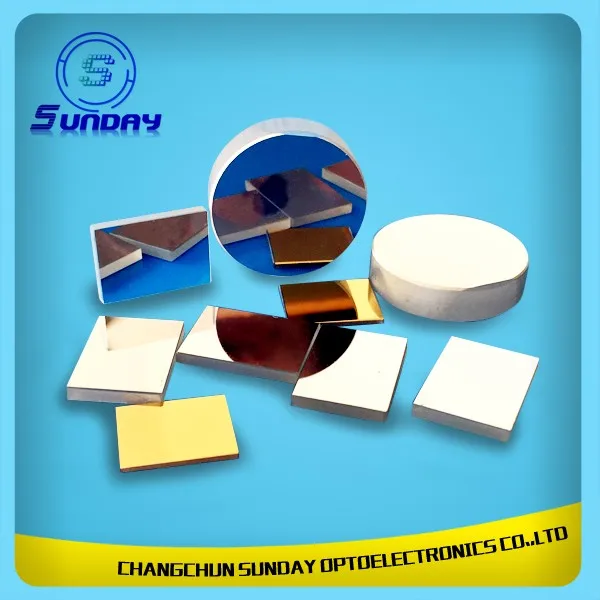

              wedge prism                                               optical mirror---metal coated mirror
              penta angle prism                                                                  dielectric mirror
              square/rectangular prism
optical filter---neutral density filter                        laser component---laser module---infrared laser module
                          beam splitter plate                                                                                      red laser module
                          short pass filter                                                                                            green laser module
                          long pass filter                                                                                              blue laser module
                         narrow bandpass filter                                                      laser diode module
camera lens---900mm F8 Mirror Camera Lens
                          500mm F8 Mirror Camera Lens
                          500mm F6.3 Mirror Camera Lens
                          300mm F6.3 Mirror Camera Lens
                          650-1300 Telephoto Zoom Lens
                          500mm Telephoto Lenses Fixed Focus Lens
                          420-800Telephoto Zoom Lens
                          85mm Portrait Long Distance Fixed Focus Lens
                          8mm Supper Fisheye Lens

FAQ

Q:What is your minimum order requirement
A:MOQ:1 piece
Q:How long will it take to execute my order ?
A:After confirming the payment.
Q:Can you give warranty of your products ?
A:We promise the quality, if the quality has any problems, we will produce new produces or return you money.

Q:How to pay?

A:T/T, Paypal, West Union, bank transfer and Assurance payment on Alibaba and etc.

Q:Can you produce custom optics?

A:Yes, we can produce custom optics
Q:If you have any other questions,please do not hesitate to contact me.
A:Tel:0431-85327363
